Coolwell - Caja de concentradores PoE Ethernet/USB compatible con Raspberry Pi Zero Series, con PoE/ETH/USB HUB HAT en el interior, compatible con 802.3af, incluye 3 puertos USB 2.0

Marca: Coolwell

Color: PoE-ETH-USB-HUB-BOX

Caracteristicas:

• Diseñado para Raspberry Pi Zero, compatible con placas de la serie Zero
• Función PoE (alimentación a través de Ethernet), compatible con 802.3af
• Incorpora chip Ethernet RTL8152B, con puerto RJ45 de negociación automática de 10M/100M
• SMPS totalmente aislado (fuente de alimentación de modo conmutador); 3 puertos USB extendidos, compatibles con USB 2.0 / 1.1
• Diseño redondeado en ángulo, sensación suave al tacto, tapa de la caja "simple a presión"; material ABS de calidad, superficie pulida opaca, antihuellas

Unión: Computadora personal

Detalles: Features

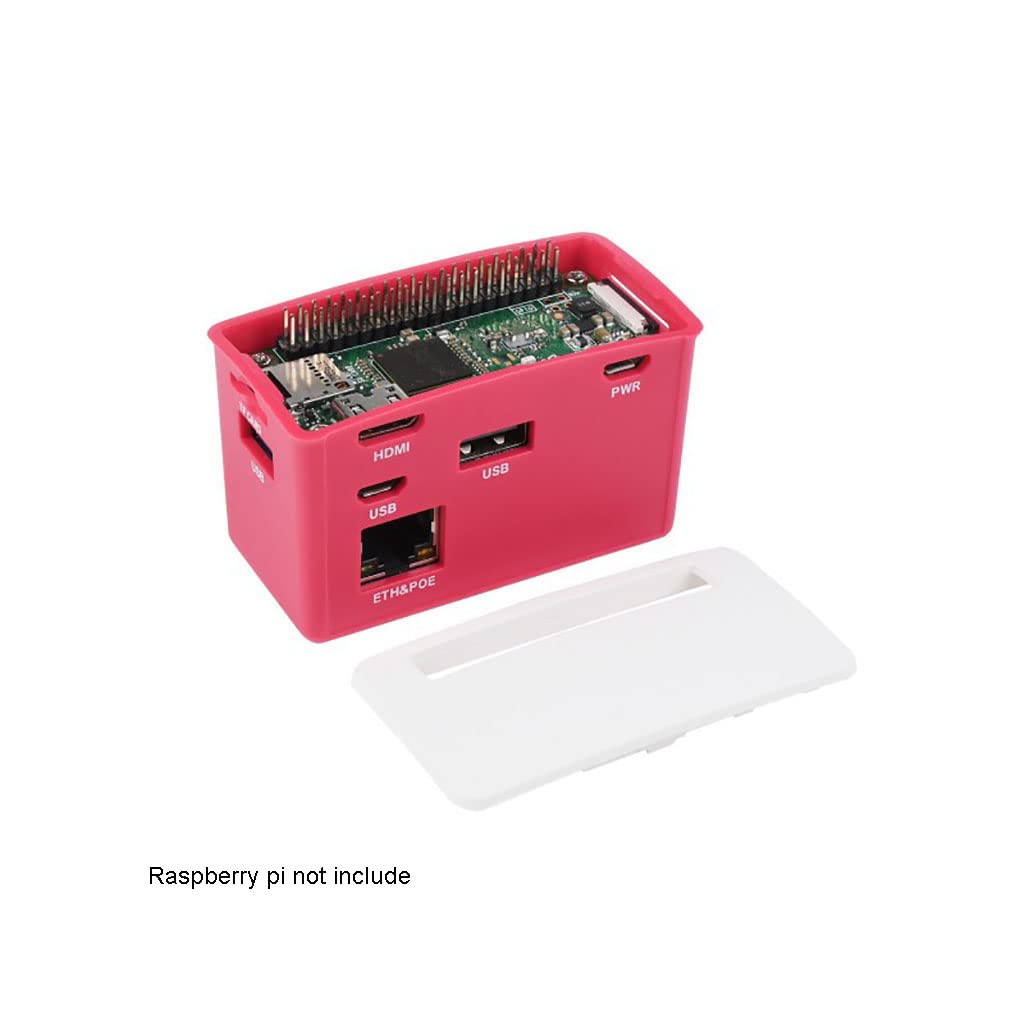

The PoE-ETH-USB-HUB-BOX is a HUB kit with PoE/ETH/USB HUB HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out
of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface,
effectively keeping the Zero away from dust. By using this small HUB BOX and some proper 802.3af-compliant power sourcing equipments, it is

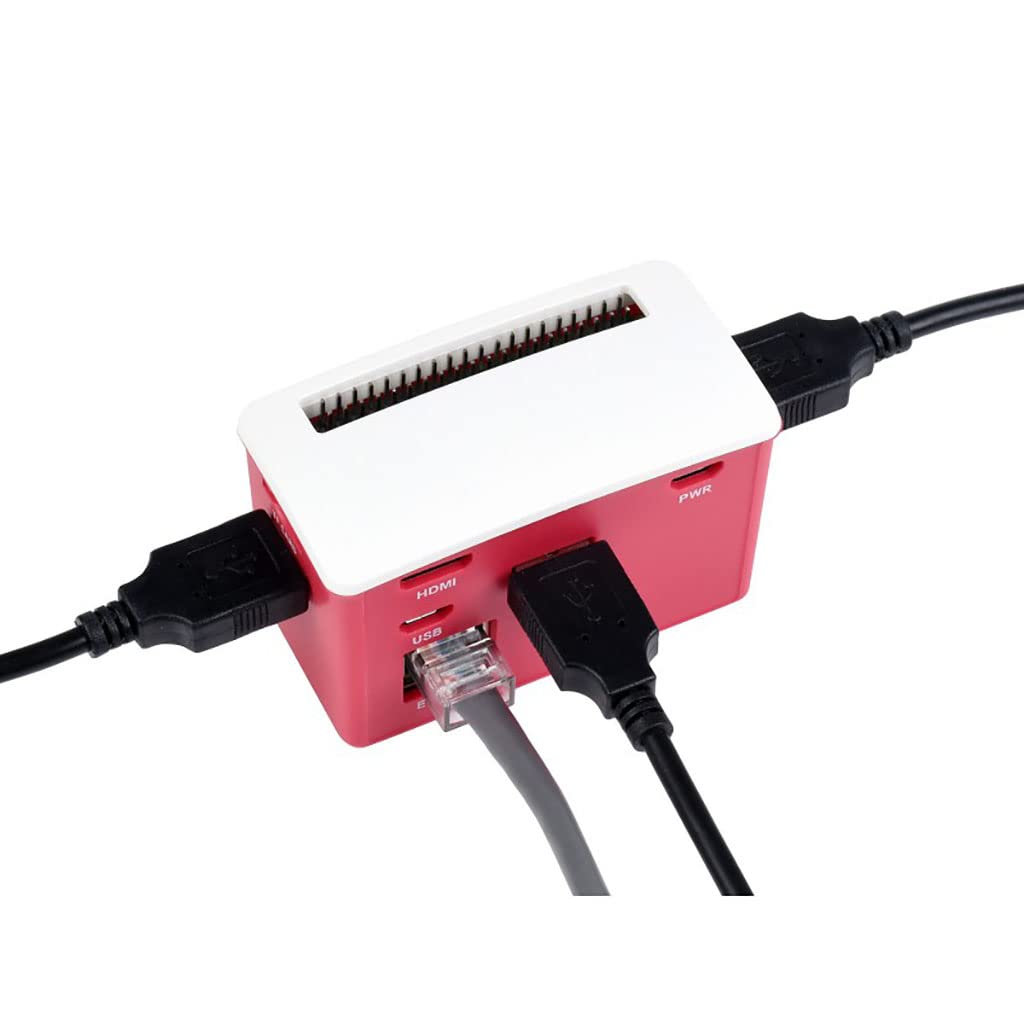

possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports.

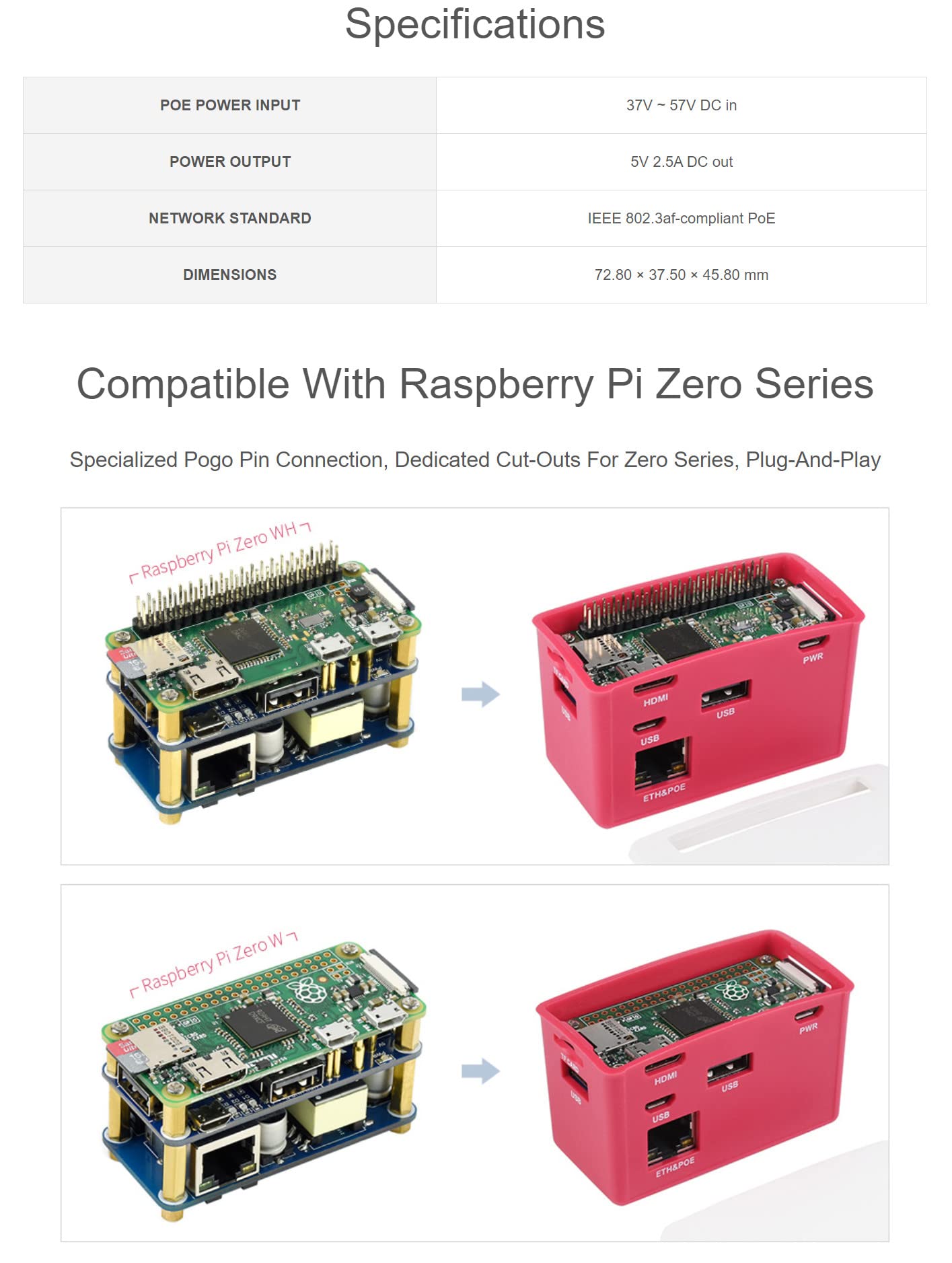

Designed for Raspberry Pi Zero, compatible with Zero series boards

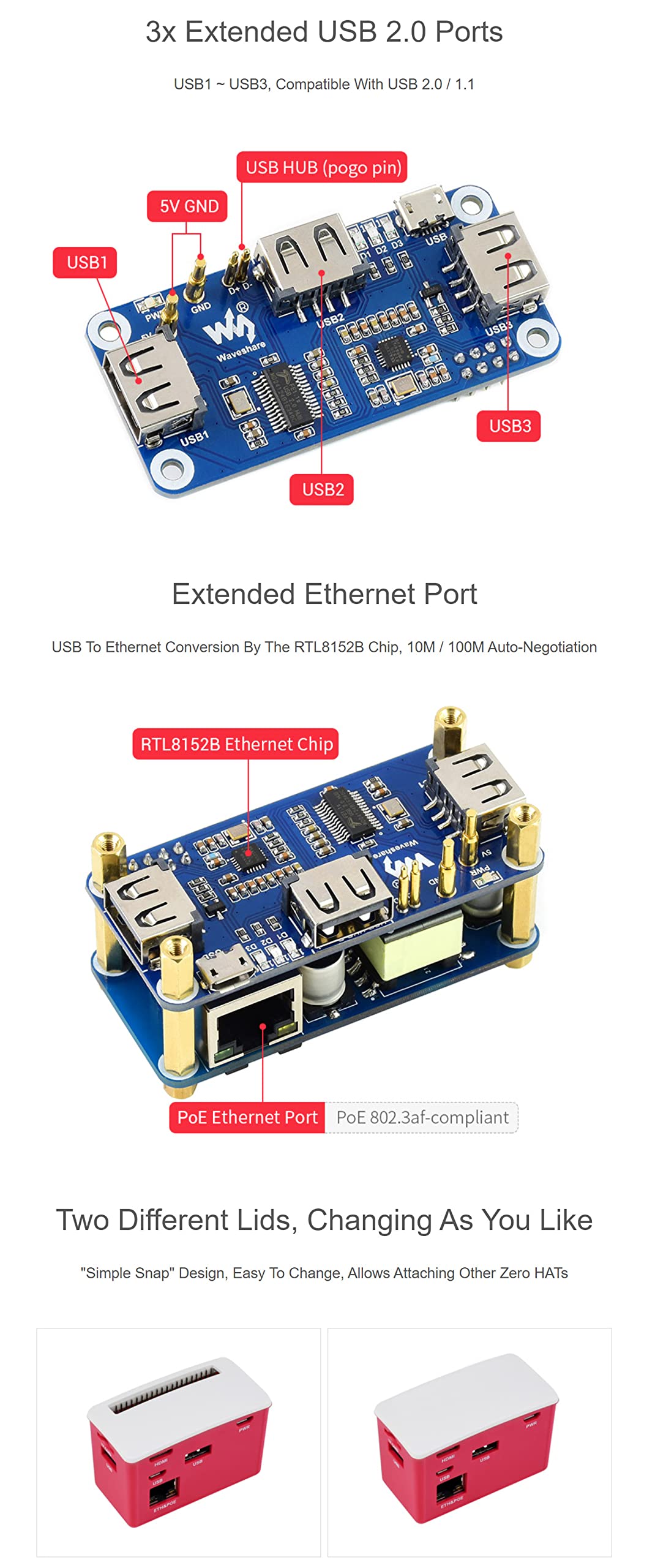

Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
PoE (Power over Ethernet) feature, 802.3af-compliant
Fully isolated SMPS (Switch Mode Power Supply)
3x extended USB ports, compatible with USB 2.0 / 1.1
Angle rounded design, smooth hand feeling, "simple snap" case lid
Quality ABS material, dull polish surface, anti-fingerprint
Comes with two different lids, changing as you like

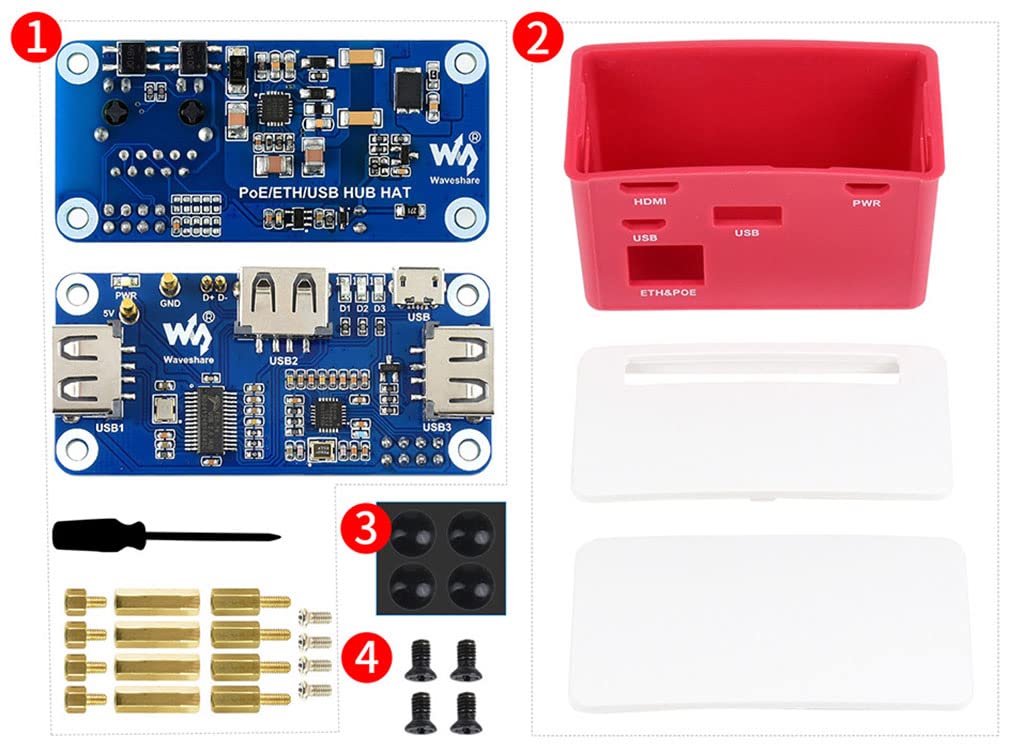

Part List

1. PoE/ETH/USB HUB HAT kit x1
2. ABS case x1
3. Rubber feet 4PCS x1
4. Screws pack x1

Resources download: https://www.waveshare.com/wiki/PoE/ETH/USB_HUB_HAT

EAN: 0766460840890

Dimensiones del paquete: 5.4 x 3.9 x 1.7 inches
